Food Inactivation Equipment

Shandong Chengming Environmental Technology Co., Ltd. leverages a comprehensive industry chain encompassing design and development, manufacturing, on-site installation and commissioning, and lifelong after-sales service to provide reliable food inactivation equipment.

The main equipment types of our factory include animal carcass crushers, livestock and poultry inactivation equipment, coil dryers, and food inactivation equipment. Our expertise and comprehensive service are two important points for the stable operation of the equipment.

Process

1. Turn on the main power, start the steam generator, and heat the temperature to within the operating range, generally 110℃-120℃.

2. Open the steam inlet valve, agitator motor, and air lock motor 1.

3. The material begins to enter the grain conditioner. Under the action of agitation, the material slowly passes through the two-layer conditioner. Simultaneously, steam continuously acts on the grain surface, raising the grain temperature to 85℃-95℃, ensuring a sterilization and inactivation time of approximately 5 minutes.

4. After feeding begins, turn on the chain conveyor motor, air lock motor 2, and fan motor.

5. After the processed grain passes through the conveyor and enters the counterflow air cooler, the material limit switch automatically senses the grain level in the cooler and automatically turns on the discharge motor to discharge the grain.

6. After the operation is completed, stop the flow of material into the grain conditioner. Once the material has been completely discharged, shut down the steam generator, air lock 1, grain conditioner, chain conveyor, counterflow air cooler, air lock 2, and fan in this order.

7. Check the surrounding environment, remove any foreign objects, and finally turn off the main power supply.

Equipment parameters

Equipment FeaturesHigh-Temperature and Corrosion-Resistant

Considering the use in high-temperature and high-pressure working environments, our food inactivation equipment is made of high-temperature and corrosion-resistant materials for your long-term stable operation.

Wide Temperature Control Range

This device's temperature control system supports adjustable temperatures between 85°C and 120°C, tailored to the sterilization needs of different grains. This range covers the processing temperature of various grains.

Automated Control

Shandong Chengming's equipment is equipped with an electric heating system and industrial-grade control system, supporting advanced functions such as PID control and gradient adjustment to optimize the efficiency and control of the sterilization process. Cooperation cases: Our company's equipment has been used in Colombia, Russia, South Korea, Kazakhstan, Vietnam, Indonesia and other places.

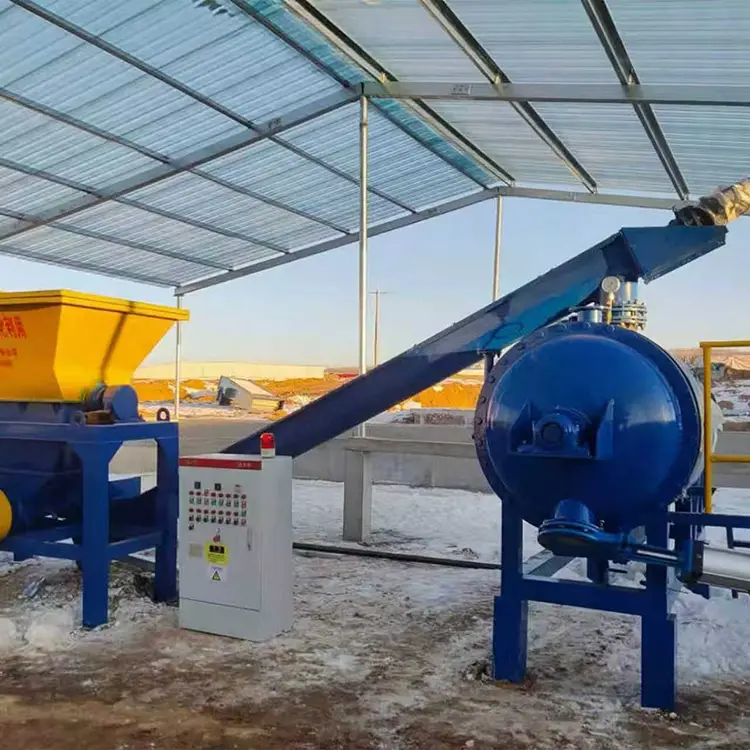

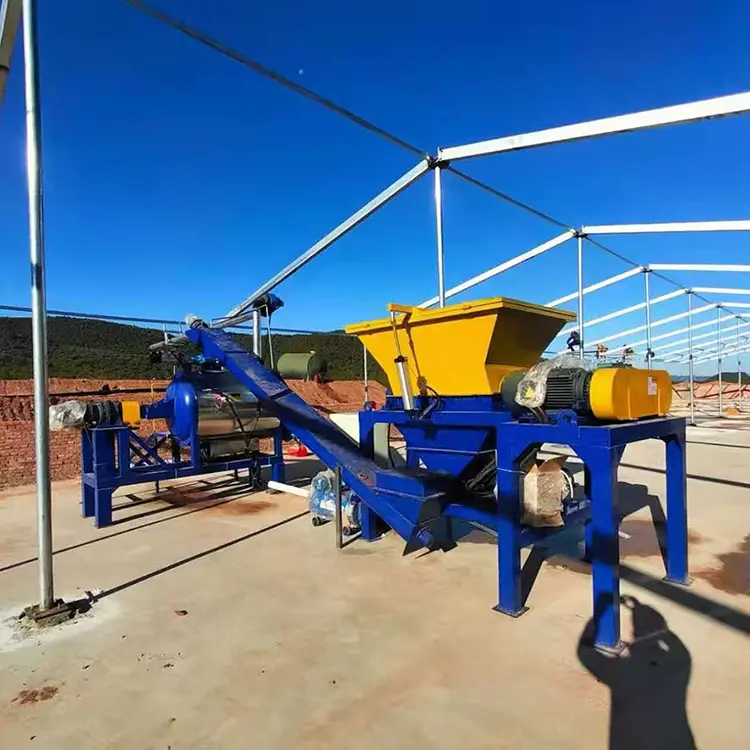

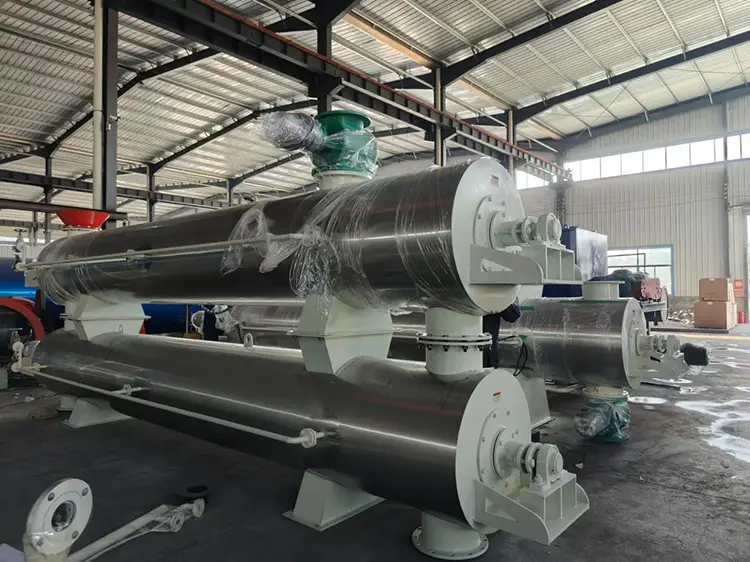

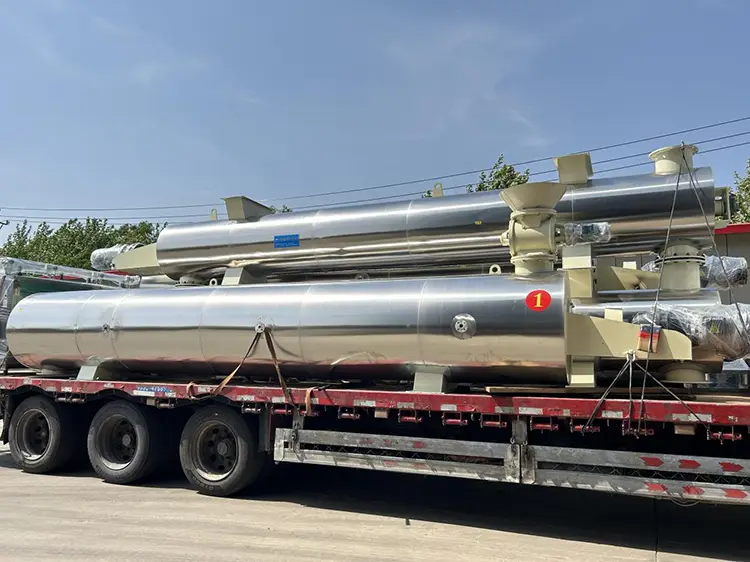

On-site photos

Certificate
