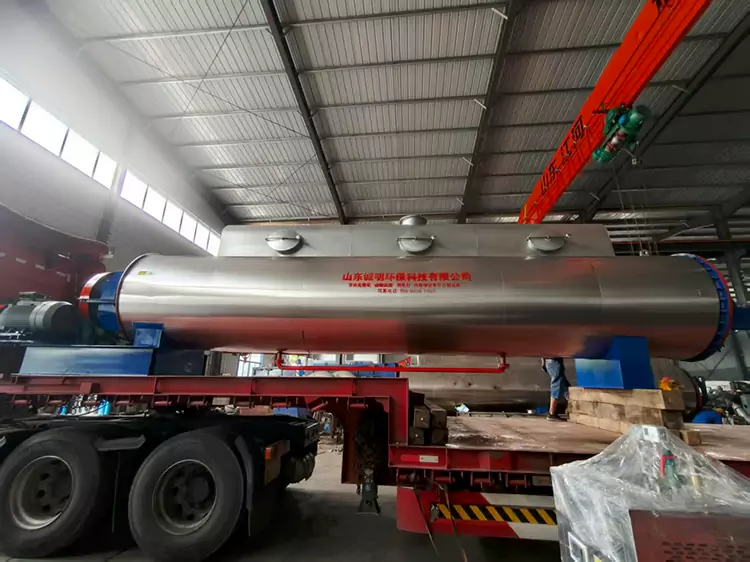

The Harmless Treatment Dryer, developed and designed by Shandong Chengming, is suitable for drying animal protein feed ingredients such as feather meal, meat and bone meal, chicken bone paste, and blood meal. Its heat source can be steam or thermal oil, using a dual-phase internal and external heating structure. We generally recommend using steam for drying. The dried material is brightly colored and high-quality.
Our dryer uses an external jacket and a main shaft coil or steam box for steam flow to increase the heating surface. The puller, mounted on the main shaft and located between the heating coils, not only propels the material forward but also provides self-cleaning properties. The mobile heating system ensures full contact with the conductors. The exhaust hood and piping are made of stainless steel for corrosion resistance and extended service life. It is the unique structure and operating principle that makes the equipment have characteristics like high heat exchange efficiency, large heat exchange area, low energy consumption, and environmental protection. We welcome you to visit our factory for an on-site inspection.
|
Temperature Range |
90-160°C |
|
Explosion-Proof Device |
If handling volatile materials, install an explosion-proof valve |
|
Data Logging |
Automatically stores over 3 months of operating data |
|
Design Pressure |
0.8 MPa |
1. Efficient Sterilization
Using a high-temperature circulating heat source (≥100°C), it achieves thorough sterilization, so it is suitable for harmless treatment of dead livestock and poultry and gets the result of the complete inactivation of pathogenic microorganisms.
2. Automation and Modularity
Equipped with a PLC control system, our dryer supports real-time parameter adjustment (such as temperature and pressure) and cloud-based monitoring of production data. The modular design allows for flexible adjustment of processing scale to meet varying production capacity requirements. Compared to traditional equipment, it is much easier and more convenient to use.
3. Environmental Protection and Safety
Fully enclosed operation of the dryer prevents secondary contamination, and it complies with EU CE certification standards. While maintaining, the cleaning can be finished in a short time (≤30 minutes), and the equipment supports CIP (Cleaning in Place) cleaning, which helps you to reduce maintenance costs.
4. Wide Applicability
It can process materials with high moisture content (such as sludge and animal carcass fragments) and is suitable for applications requiring high-temperature sterilization, such as food processing waste and pharmaceutical intermediates.
|
Product Features |
High batch processing capacity, compact footprint |
|
Condition |
Brand new |
|
Shipping Method |
Dedicated vehicle delivery |
|
Design Pressure |
0.85Mpa |
