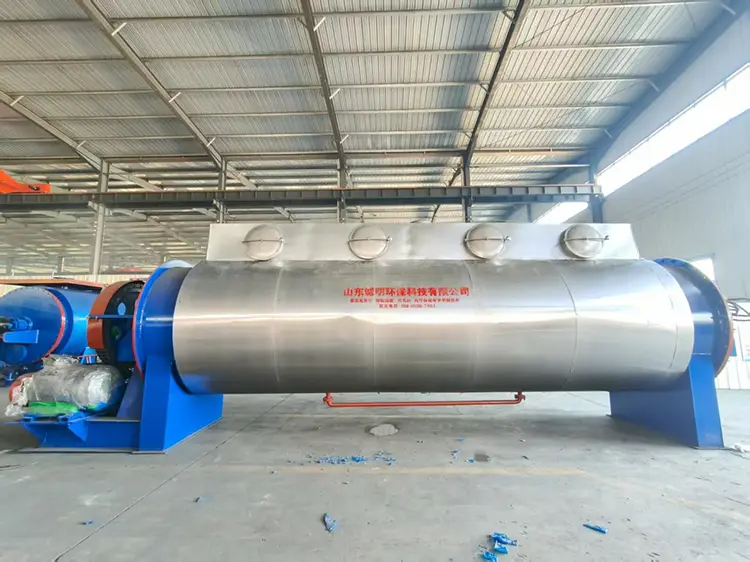

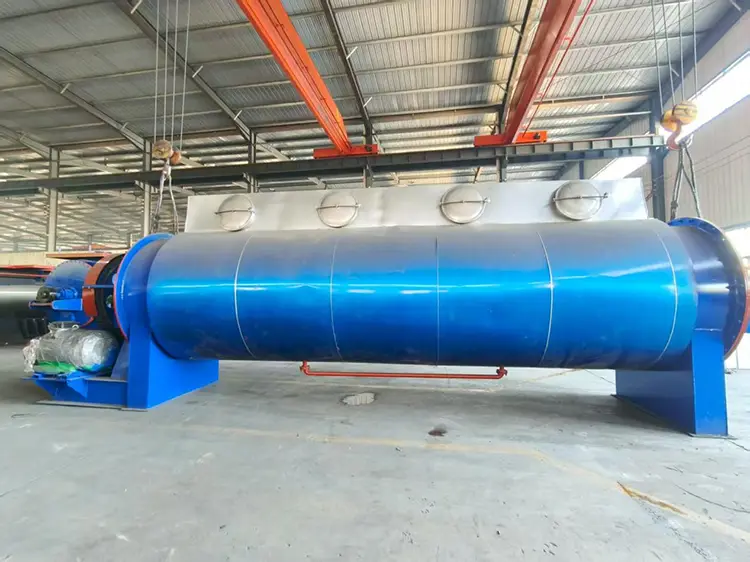

The Coil Heating Rotary Disc Dryer is a highly efficient, conduction-type continuous drying equipment. It transfers heat to the material through the heat transfer wall. Some steam enters the annular space between the outer shell and the inner wall of the cylinder, heating the material through the inner wall. Condensate is discharged through the bottom drain port. Another portion of steam enters the main shaft and coils, heating them, and condensate is discharged through the drain rotary joint. As the shaft rotates, the impellers and coils work together to thoroughly agitate and warm the material, maximizing contact between the material and the shaft and coils. Secondary steam is discharged from the top steam chamber of the outer shell through an induced draft duct. A slight vacuum is maintained within the duct to prevent exhaust steam from escaping and to avoid absorbing excessive cold air. A stripper plate, mounted on the main shaft and located between the heating coils, not only propels the material forward but also acts as a self-cleaning device, removing coatings from the shaft and cylinder walls to maintain excellent heat transfer.
|
Model |
Design pressure (Mpa) |
Working pressure (Mpa) |
Design temperature (Mpa) |
Working temperature (Mpa) |
Power (KW) |
|
CMJ-1 |
0.65 |
0.6 |
166 |
164 |
37 |
|
CMJ-2 |
0.65 |
0.6 |
166 |
164 |
37 |
|
CMJ-3 |
0.65 |
0.6 |
166 |
164 |
37 |
1. The Coil Heating Rotary Disc Dryer uses an external jacket and a main shaft coil/steam box to circulate steam, increasing the heated surface area. This structure and operating principle ensure high thermal efficiency, low energy consumption, easy operation, and a favorable operating environment.
2. A material stripper mounted on the main shaft, located between the heating coils, not only propels the material forward but also provides self-cleaning properties. The mobile heating system ensures full contact with the conductor.
3. The exhaust hood and piping are made of stainless steel, enhancing corrosion resistance and extending service life.
4. An automatic water transfer system recycles steam condensate back into the boiler, reducing energy consumption and conserving water.
Our Strengths: Shandong Chengming consistently adheres to high standards and rigorous quality management throughout its production and operations. We offer customized product design, and our after-sales service includes installation, commissioning, training, and maintenance.

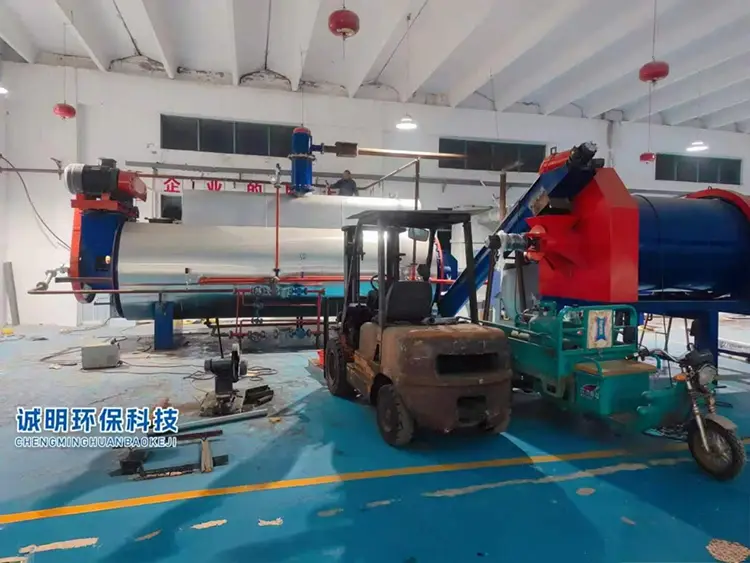

Project Cases: Our equipment has been used in Russia, South Korea, Kazakhstan, Vietnam, Indonesia, and other countries.
