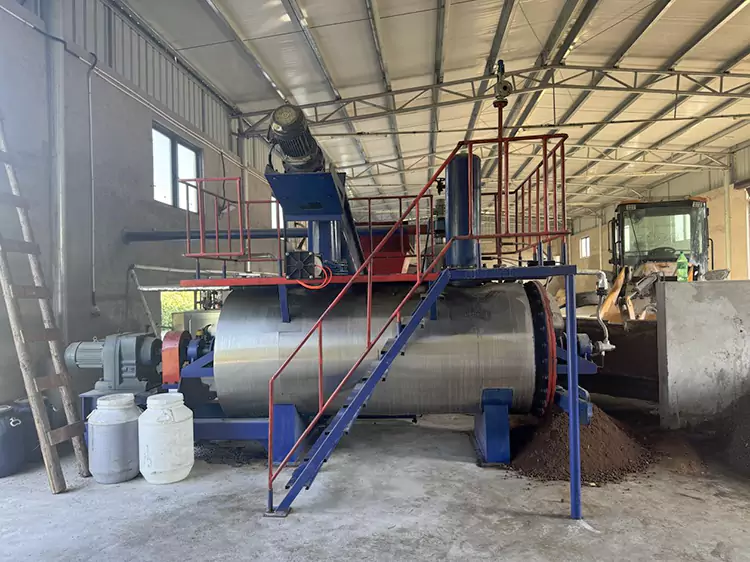

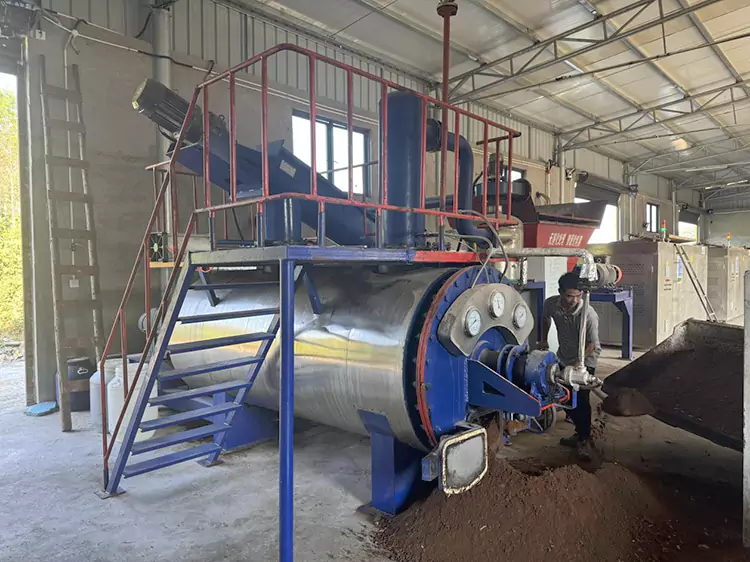

Animal Rendering Machine, part of Chengming's dryer series, sterilizes diseased and dead livestock and poultry using high temperatures and high pressures. High-temperature steam acts directly or indirectly on the material, killing pathogens and drying it.

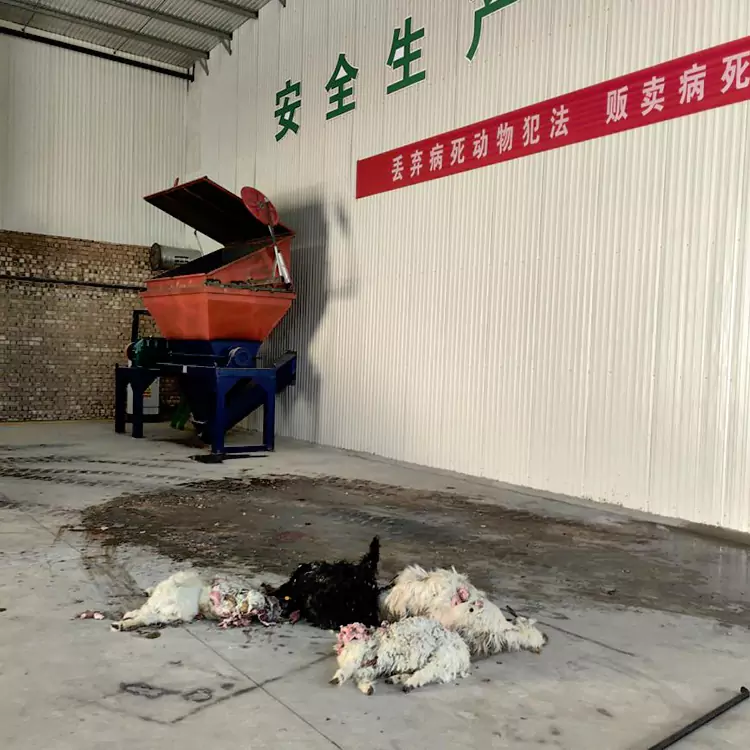

High-temperature sterilization: Dead livestock and poultry are crushed and placed in a sealed container. A high-temperature circulating heat source is introduced through the interlayer. The high temperature and pressure of 150-160°C inactivate and kill microorganisms such as bacteria and viruses.
Drying: High temperatures evaporate moisture from the material, while agitation accelerates moisture removal, ultimately resulting in a readily usable product such as meat and bone meal or animal fat.
|
Operation method |
Continuous |
|
Color |
Blue, Beige, Red |
|
Temperature |
100°C-180°C |
|
Type |
Chemical Dryer |
|
Material |
Carbon Steel and Stainless Steel |
|
Heating method |
Steam |
|
Equipment features |
High Temperature and High Pressure Sterilization |
|
Model |
Tank size (mm) |
Design pressure (Mpa) |
Design temperature (℃) |
Processing capacity (T) |
|
CMJ-1 |
φ1300/1400*2000 |
0.45/0.65 |
160/190 |
1 |
|
CMJ-2 |
φ1400/1600*2162 |
0.45/0.65 |
160/190 |
2 |
|
CMJ-3 |
φ1400/1600*3062 |
0.45/0.65 |
160/190 |
3 |
|
CMJ-4 |
φ1400/1600*4036 |
0.45/0.65 |
160/190 |
5 |
Chengming's series of drying equipment includes crushing equipment, screw conveyors, chemical dryers, and condensation systems (vacuum pump stations and cyclone dust collectors). It uses negative pressure to accelerate drying efficiency and reduce environmental pollution.
Thorough Sterilization: The pathogenic microorganism kill rate after treatment reaches 99.99%.
Recyclable Product: The meat and bone meal produced after treatment can be directly used in feed or fertilizer production, achieving high resource utilization.
