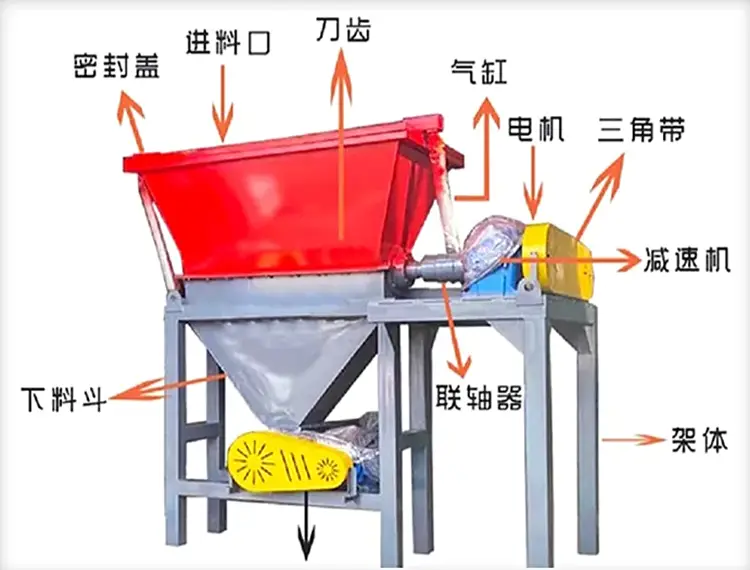

The Animal Carcass Double Shaft Crusher is used for harmless disposal, breaking animal carcasses into small pieces for subsequent processing. The entire equipment is mainly composed of the core function of "crushing", combined with the design of feeding, power, protection and other needs.
The frame is welded from high-strength steel and supports the entire machine, ensuring stability and vibration resistance during operation.
The crushing chamber, also known as the housing, is a closed metal cavity that houses the crushing cutters. This prevents material splashing during the crushing process while also reducing noise and odor.
The cutting blade system is typically a rotating blade system consisting of a rotating blade and a fixed blade made of alloy steel. The rotating blade is mounted on a rotating shaft, while the fixed blade is fixed to the inner wall of the chamber. The blade shears and tears the muscle and bone of the animal carcass through high-speed relative motion.
The Animal Carcass Double Shaft Crusher can be customized with a breaker hammer or toothed plate to enhance the crushing effect on hard tissue.
The drive shaft connects the cutting blade to the power system, transmits torque, and is typically heat-treated for increased strength.

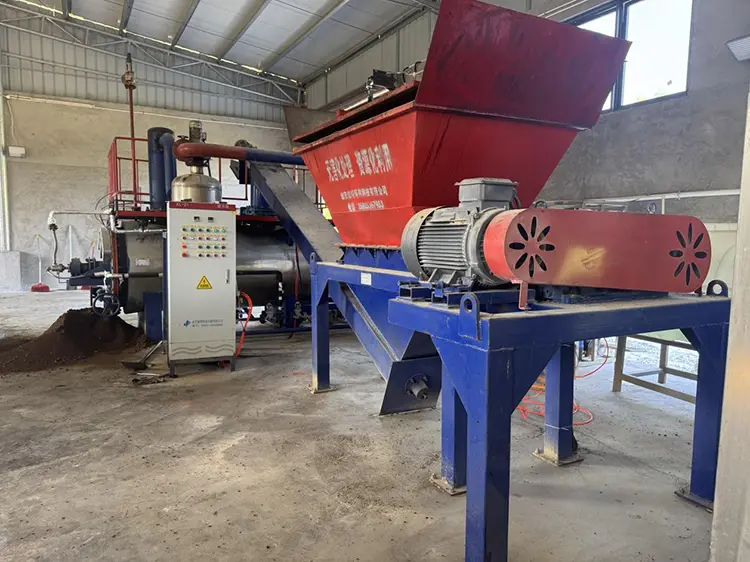

The power and transmission system consists of a motor and a reduction gear. The motor provides the power source. Three-phase asynchronous motors of varying power are selected based on the equipment specifications. Smaller equipment can also use single-phase motors.
The reduction gear, including a speed reducer and pulleys, regulates the speed and smoothly transmits the motor power to the drive shaft, ensuring crushing torque.
The feed and discharge system typically features a funnel-shaped or tilted inlet design to facilitate the placement of carcasses. It can be equipped with a manual or automatic pusher to prevent material jamming.
The discharge port is located at the bottom of the crushing chamber. Crushed material is discharged via gravity or a screw conveyor and connected to subsequent processing equipment, such as a humidifier or fermentation unit, depending on the project being processed and the desired end product.
|
Model |
Feed port size (mm) |
Processing capacity (T/h) |
Power (Kw) |
Net weight (T) |
Overall dimensions (mm) |
|
CM1T |
1000*1400 |
1 |
25 |
2 |
1800*2500*1800 |
|
CM3T |
1200*1700 |
8 |
45 |
3.5 |
1800*3500*1800 |
|
CM5T |
1200*2000 |
10 |
55 |
4.5 |
4000*2000*1800 |
