The improved new Animal Carcass Shredder changes the original moving blade shape, material, and crushing method. The arc-shaped moving blade and the 30°-angled stationary blade form a circular scissor-like working mode, making material shredding easier. The moving blades are arranged in a 20° spiral pattern on the main shaft, reducing torque and preventing the equipment from jamming. The moving and stationary blades are precision-machined from Cr12 for sharper blades. The appropriate gap between the moving and stationary blades facilitates shredding of skins and intestines. The main shaft adopts a hexagonal structure, which has greater torque, better stability, and longer service life than traditional flat-key types.
|
Model |
Feed port size (mm) |
Processing capacity (T/h) |
Power (Kw) |
Net weight (T) |
Overall dimensions (mm) |
|
CM1T |
1000*1400 |
1 |
25 |
2 |
1800*2500*1800 |
|
CM3T
|
1200*1700 |
8 |
45 |
3.5 |
1800*3500*1800 |
|
CM5T
|
1200*2000 |
10 |
55 |
4.5 |
4000*2000*1800 |

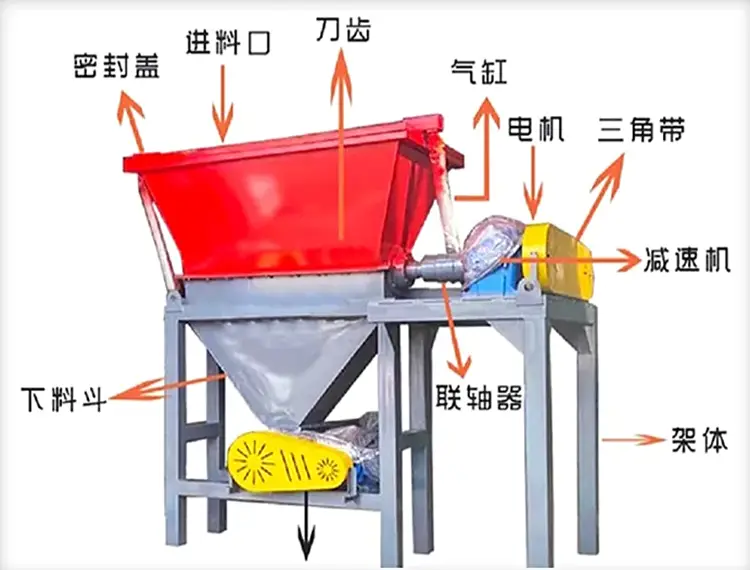

1. The Animal Carcass Shredder has a simple structure, is easy to assemble, and is simple to clean.
2. It utilizes cutting and shredding blades in a spiral motion. This allows for efficient and thorough shredding of animal carcasses. The spiral motion is less prone to clogging, resulting in low energy consumption, significantly reducing labor costs, and minimizing malfunctions. Protective covers are installed on relevant parts to effectively prevent personal injury, ensuring safety and efficiency.
3. The shredded material is fine and uniform, completely shredding animal skins and intestinal tissue. Material conveying is tangle-free and non-clogging, reducing processing time and improving efficiency. The processed material enters the oil press without clogging, resulting in energy and power savings.
Cases: Our equipment has been used in Colombia, Russia, South Korea, Kazakhstan, Vietnam, Indonesia, and other countries.
