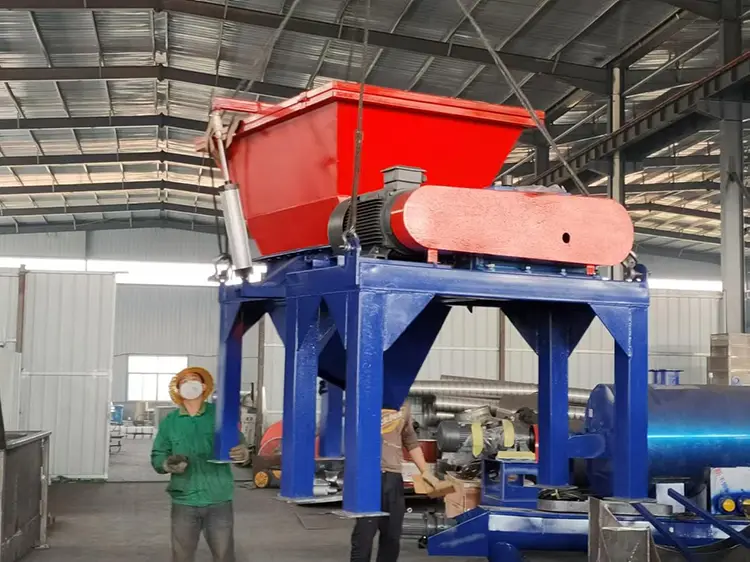

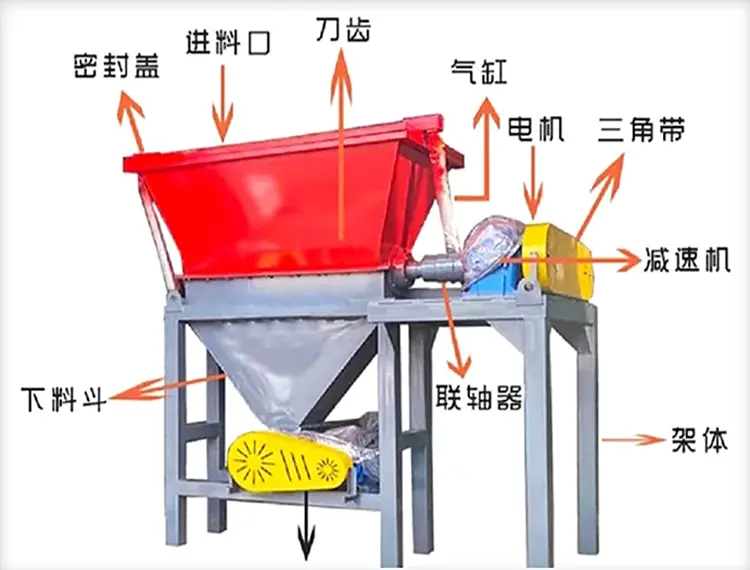

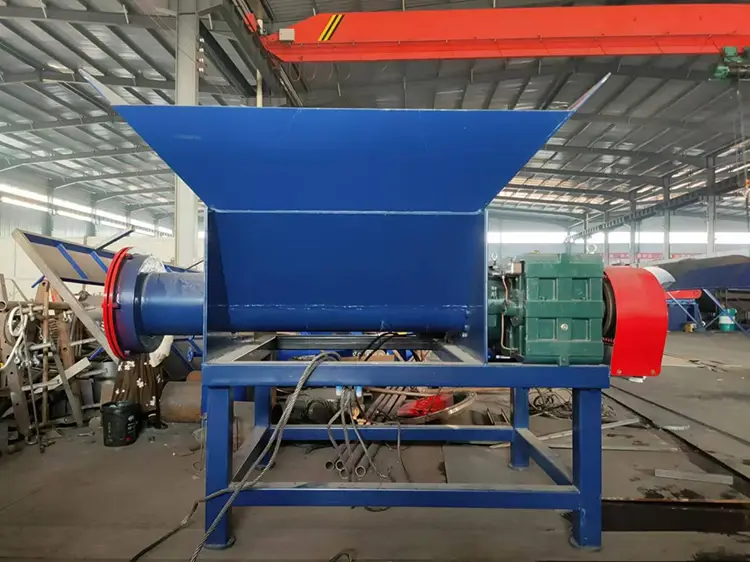

In principle, the Livestock Carcass Crusher utilizes two low-speed, high-torque shafts in relative motion. These shafts are equipped with angled blades. As the main shafts rotate, the blades tear and shear the carcasses entering the machine. The crushed carcasses are discharged directly from the machine without passing through any filtration, completing the crushing process. Specific crushing size requirements can be adjusted by replacing the blades.
|
Model |
Feed port size (mm) |
Processing capacity (T/h) |
Power (Kw) |
Net weight (T) |
Overall dimensions (mm) |
|
CM1T |
1000*1400 |
1 |
25 |
2 |
1800*2500*1800 |
|
CM3T
|
1200*1700 |
8 |
45 |
3.5 |
1800*3500*1800 |
|
CM5T
|
1200*2000 |
10 |
55 |
4.5 |
4000*2000*1800 |
The Livestock Carcass Crusher utilizes a unique shredding method, combining a rotating blade and a top blade. The blades are sharp enough to cut different parts of the carcass, and are not easily abraded by the hide or bone. A special device prevents the blades from becoming entangled in the shredded hide, thus preventing them from disrupting the continuous shredding process.

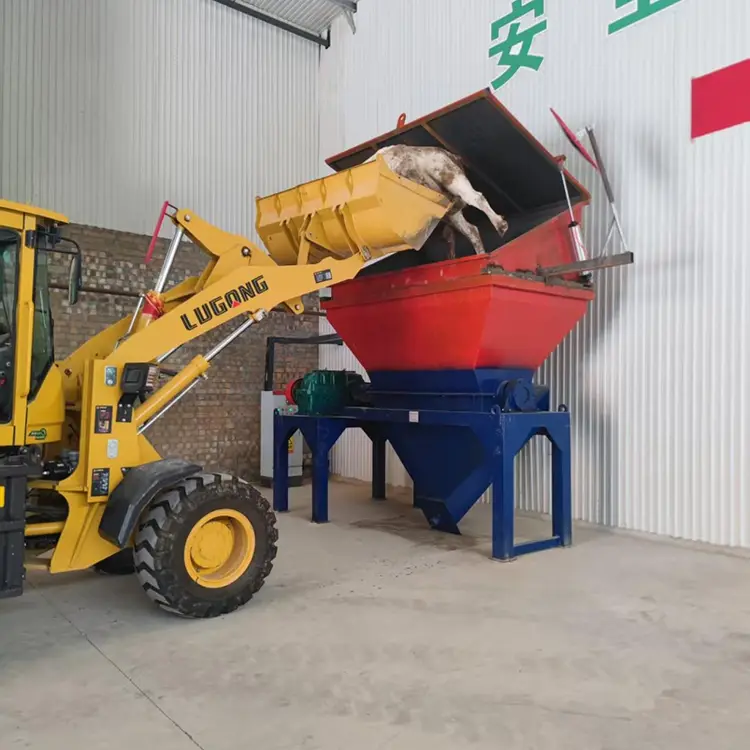

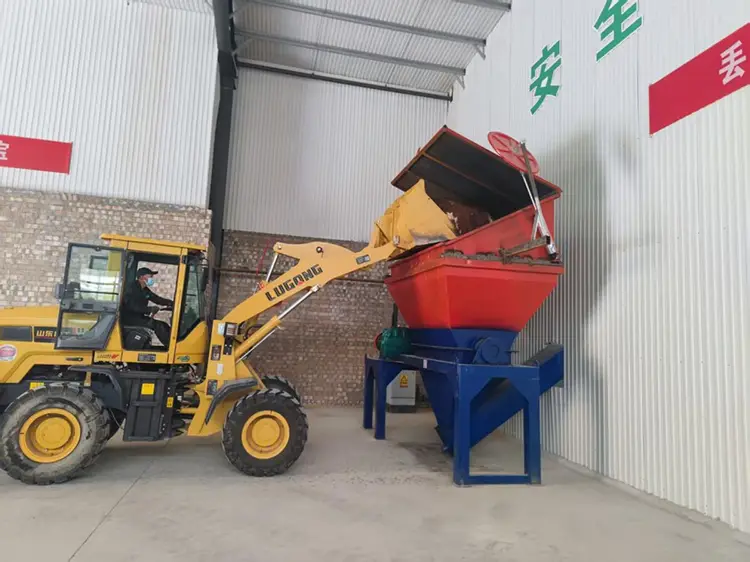

Powered by a high-power motor and fully PLC-controlled, this crusher boasts high efficiency and low energy consumption. It's also simple to operate and requires no significant ongoing maintenance. For even greater convenience and labor-saving features, the crusher can be equipped with a lifting mechanism for automatic feeding, saving labor costs.
